Fermomatic

home / application type / Products for Aluminium

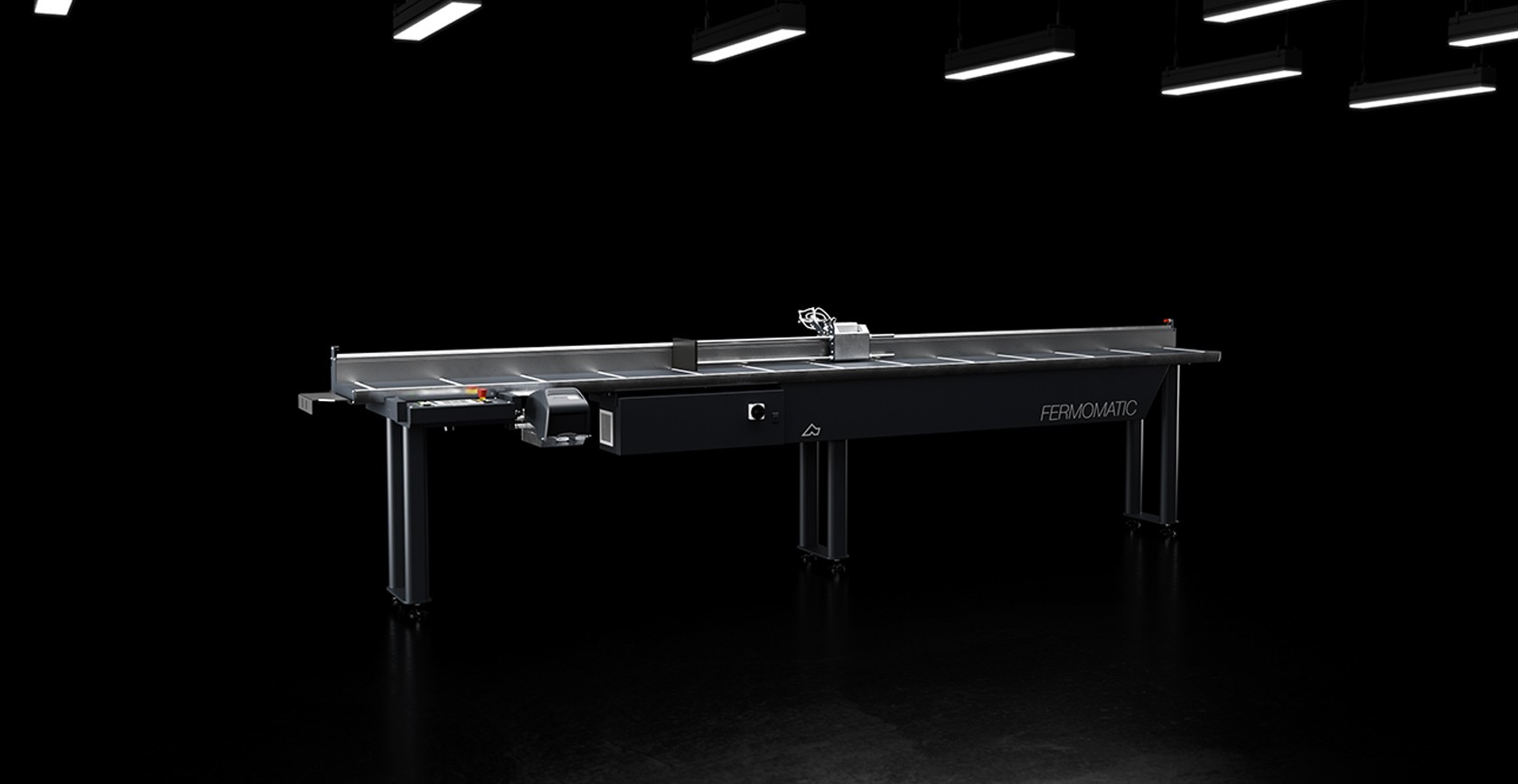

Stop gauge and profile support system with brushless motor controller positioning of the positive stop and electronic read-out by absolute magnetic band. Available in three lengths with high positioning accuracy and repeatability.

Estimate Request

Technical data

MACHINE CHARACTERISTICS

Electronic control of the X axis

X axis positioning speed (m/min)

Steel rolls on roll-bearings

Rollers width (mm)

310

Effective stroke (according to model) (mm)

4.200; 5.700; 7.200

Max loadable profile weight (kg/m)

Maximum total load (kg)

120; 150; 180

Fixed-pitch roller conveyor (mm)

363

Rolls number on roller conveyor (according to model)

13; 17; 21

Conveyor plane height (mm)

950 ÷ 1000

Conveyor plane height for SCA/E (mm)

1.100

Support feet number (according to model)

3; 4; 5

Detection of moving stop position through direct measuring system with absolute magnetic band

Total weight (according to model) (kg)

350; 450; 550

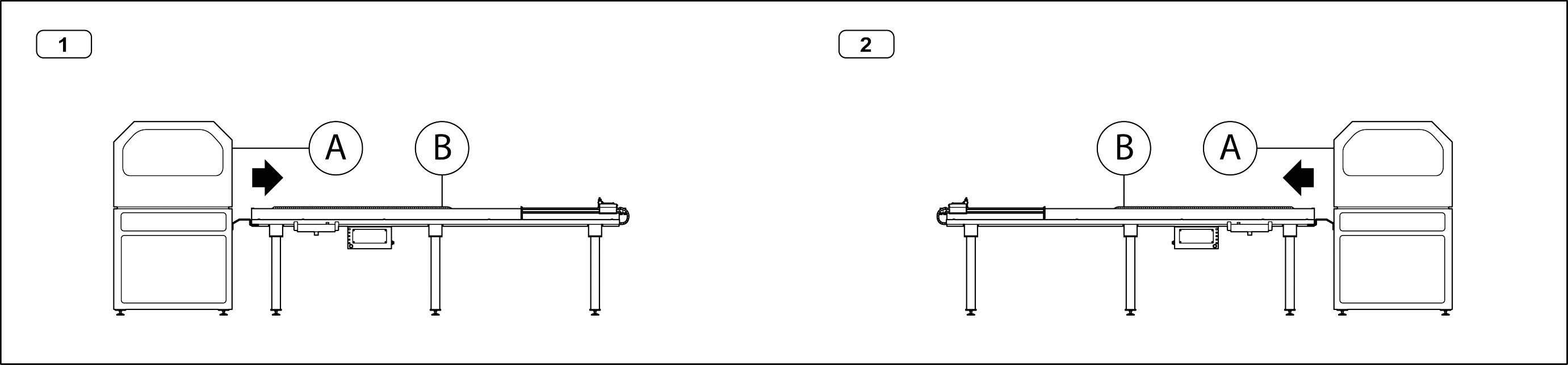

VERSIONS

1 - Left feed 2 - Right feed

A - Cutting-off machine
B - Stop gauge

COMMAND FEATURES

PLC with integrated 7” WVGA colour TFT graphic display

Graphic operator interface software

Touch screen functions

Mass memory: 2 GB onboard

Connection of cutting cycle progress signal

Preparation for label printer connection

Protective cover of the printer

Label printer with a speed of 150 mm/sec

Label printer with peeling device with a speed of 150 mm/sec

USB ports

RJ45 network card

Included

Available

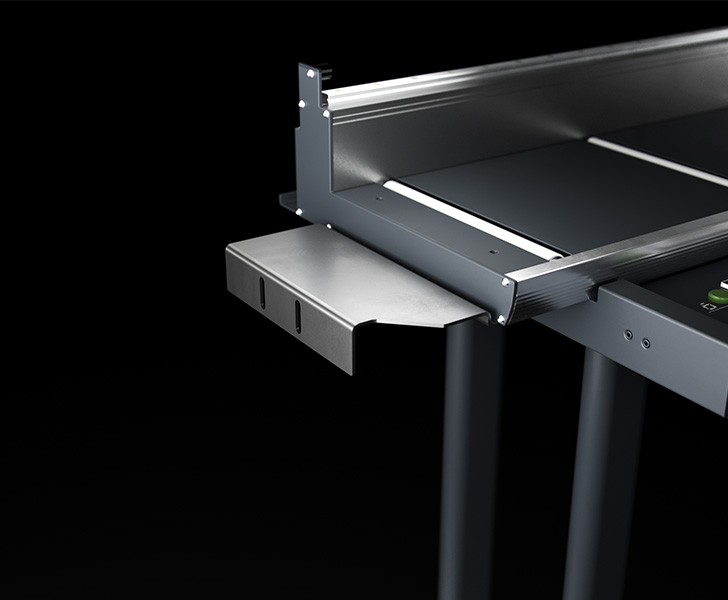

Connection to the machine

Thanks to a set of adjustable steel brackets and a wide height adjustment range, the mechanical connection can be made precisely and rigidly to all cutting machines in the range, as well as to other products available on the market.

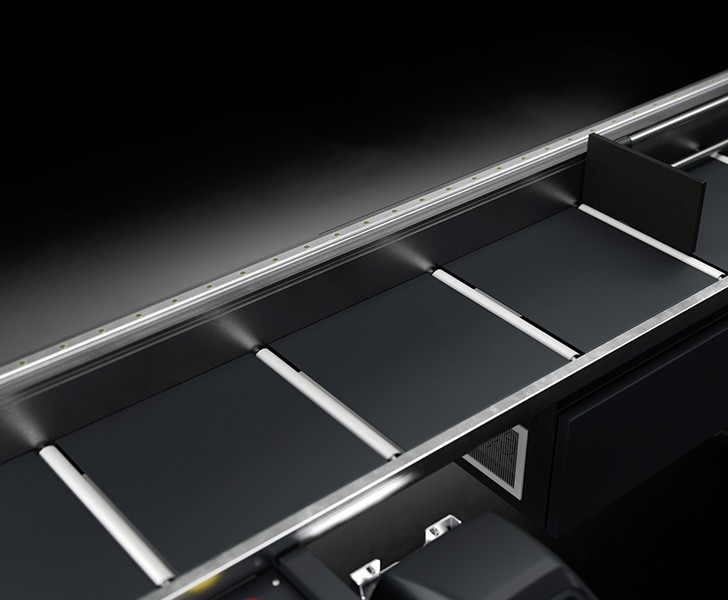

Roller

The profile is conveyed on steel rollers installed on robust ball bearings, ensuring smooth movement and preventing surface damage.

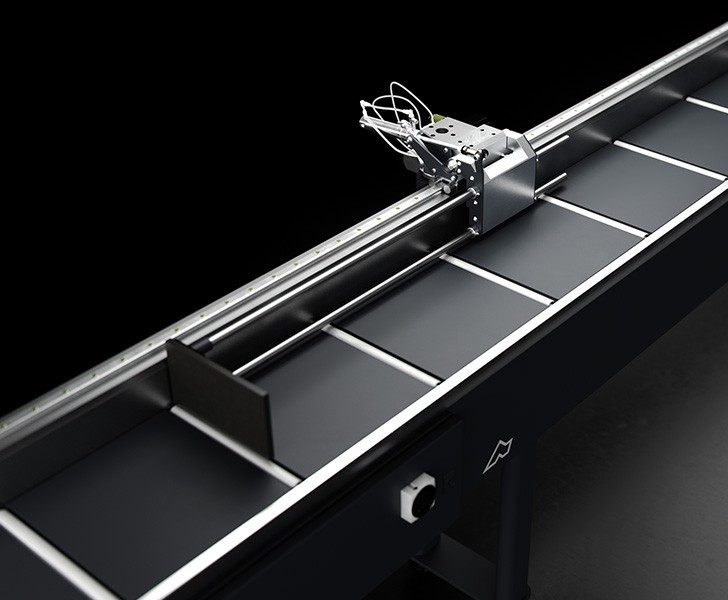

Reference stop

The carriage carrying the reference stop moves along recirculating ball bearing slides and guides, driven by a brushless motor with CNC-controlled positioning. This allows the exact length of the workpiece to be set with reference to the centre of the blade.

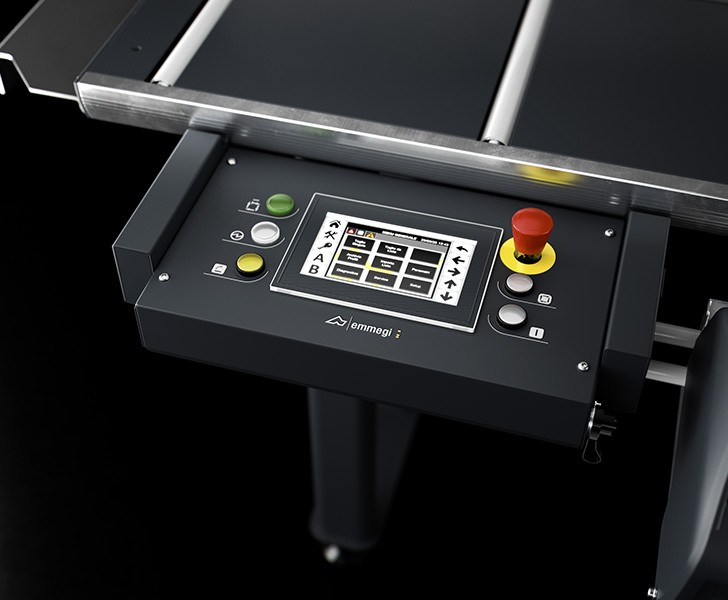

Control

The control panel consists of an operator console equipped with a PLC and an integrated 7” colour TFT WVGA graphic display. This enables cutting lists to be created directly on the machine, allowing the stop to reposition itself sequentially and automatically. Cutting lists can also be prepared remotely and transferred to the machine via USB port or LAN connection.

Barcode reader (Optional)

Through the use of the barcode reader, the system automatically identifies the structure and consequently positions the stop at the predetermined height, reducing cycle times.

Products for Aluminium Fermomatic Barcode reader Emmegi

Products for Aluminium Fermomatic Printer preparation Emmegi

Printer preparation (Optional)

The machine is prepared for the installation of a printer that can be selected from compatible models. The set-up includes software enabling for the label printing function, mechanical support elements for positioning on the machine, wiring and preparation for electrical connection, and a folding cover to protect the printer from shocks and possible entry of swarfs. The mechanical set-up for installation may vary according to the machine models.
