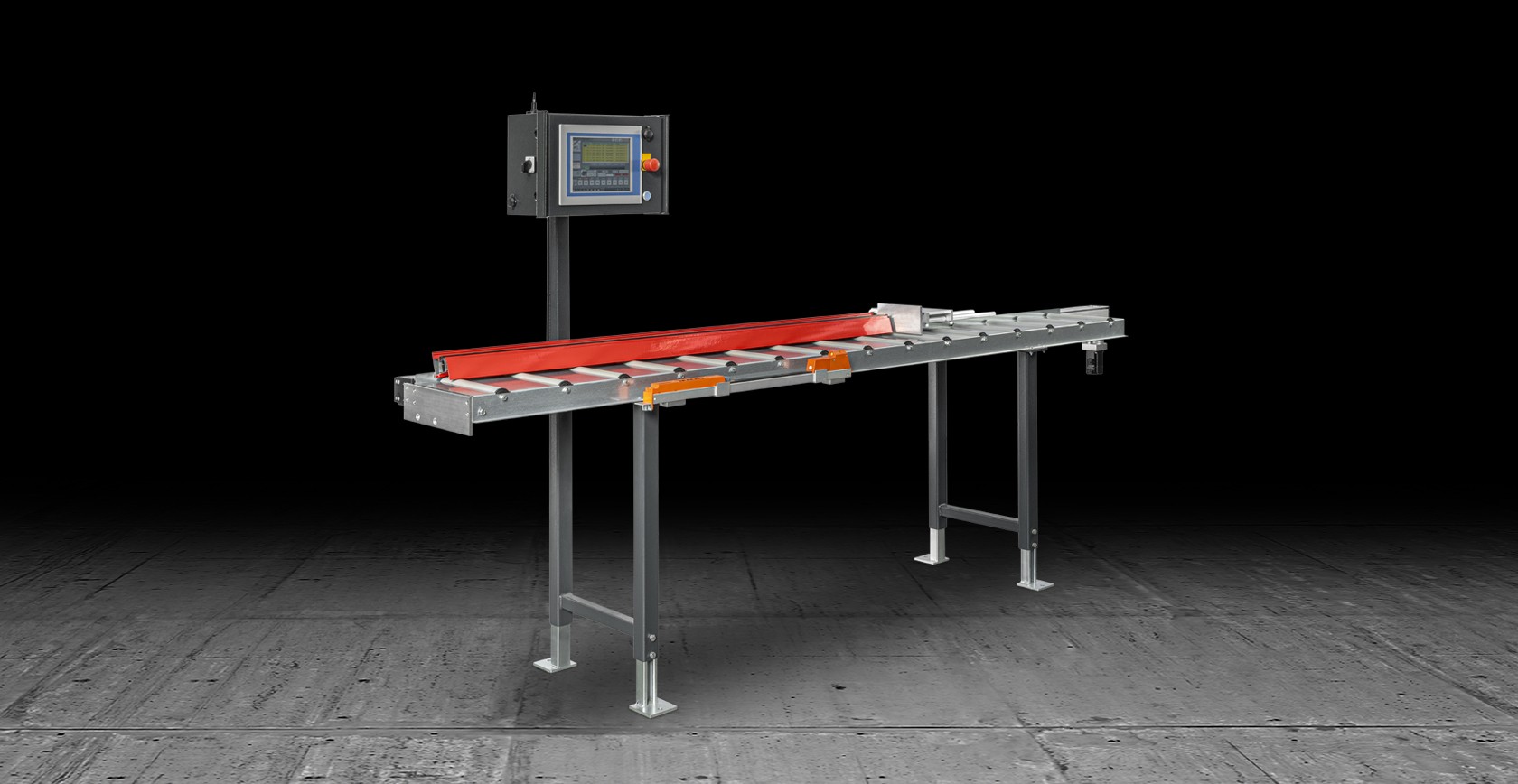

Stop gauge and profile support system with movement of the stop on CN axis and electronic read-out by absolute magnetic band. Equipped with an electronic measurement system that allows to save data on internal memory or transferred in real time to a PC or to the control unit of a miter saw via Bluetooth. It allows machining with high accuracy and repeatability of positioning.

Estimate Request

Technical data

MACHINE CHARACTERISTICS

Electronic control of the X axis

Plastic rolls on roll-bearings

Driven by servodrive with planetary gear

Max. stroke (mm)

3.000

Rollers width (mm)

300

Rollers diameter (mm)

Max loadable profile weight (kg/m)

100

Roller pitch (mm)

200

Rolls number on roller conveyor

Conveyor plane height (mm)

850 ÷ 1.030

Support feet number

Detection of moving stop position through direct measuring system with magnetic band

Lifting stop

Positioning accuracy (mm)

± 0,1

Tolerance on repeatability of measurement (mm)

± 0,1

COMMAND FEATURES

PLC with integrated graphic colour display 15”

Graphic operator interface software

Touch screen functions

Loading and managing of cutting lists

Connection of cutting cycle progress signal

USB ports

RJ45 network card

Lan card WLAN

RS232 ports

ELECTRONIC MEASURING TOOL FOR GLAZING BEADS

Minimum measurable length (mm)

150

Maximum measurable length (mm)

3.000

Resolution (mm)

0,1

Accuracy (mm)

± 0,1

Power supply batteries

4 x 1,5V AA

Nominal operation duration (hours)

150

Data recovery on internal memory

Data transfer via Bluetooth

Reference points for relative measurements

Included

Available

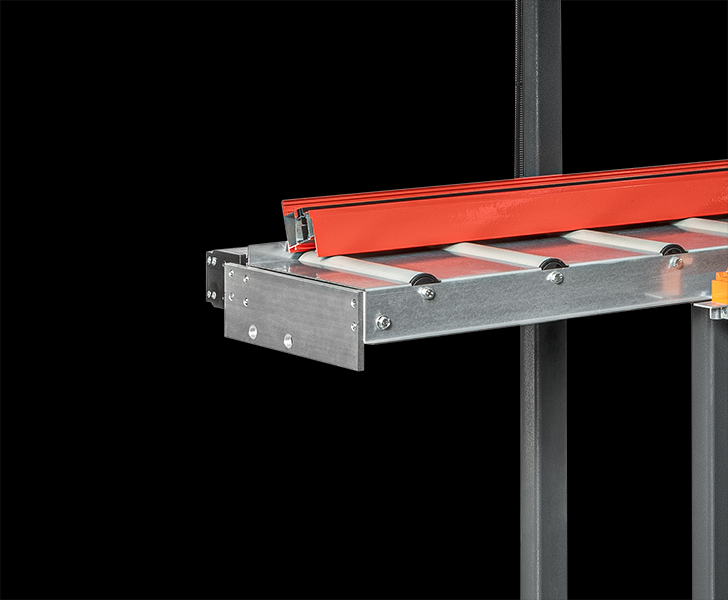

Cutting-off machine connection kit

The support and measuring system can be combined with a wide range of machines. Through special steel bracket, the mechanical connection to the cutting machine is made precisely and rigidly.

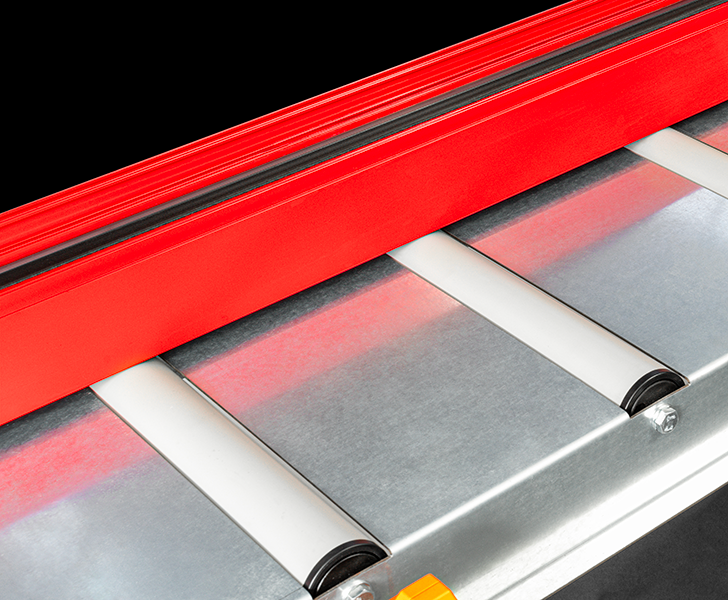

Roller

The profile is conveyed on rollers with a diameter of 50 mm that allow it to slide and position efficiently, avoiding surface damage.

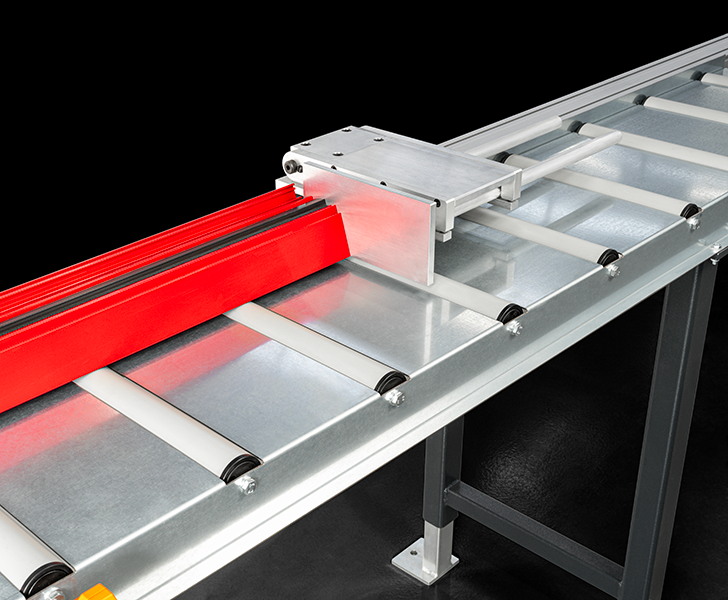

Reference stop

Reference is ensured by a mobile stop positioned on a carriage running on a linear axis. Positioning is ensured by a toothed belt protected from swarf, controlled by servodrive, which by means of a planetary gear allows accurate positioning of the length of the workpiece to be cut with a precise reference on the centre of the blade.

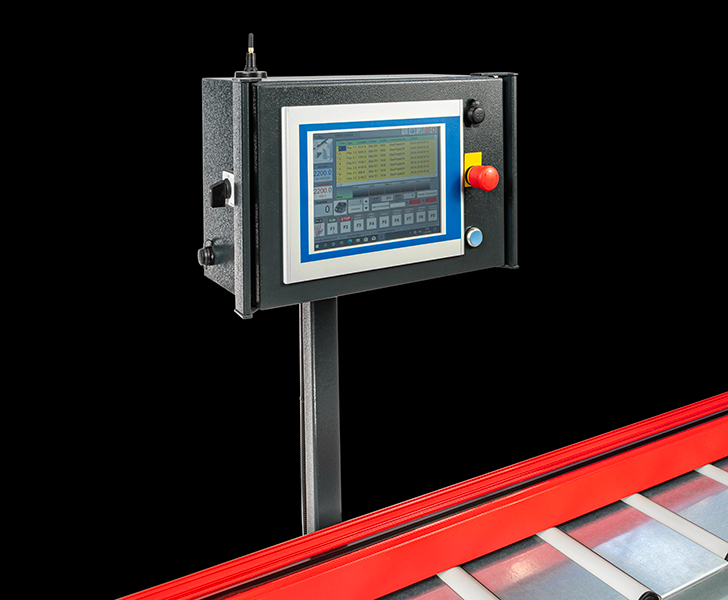

Control

Through a tested PLC, it is possible to perform the preparation of cutting lists, then allowing the repositioning of the stop sequentially and automatically. The interface uses a 10.4’’ touch-screen display and software that allows manual data input or, alternatively, import from an external source.

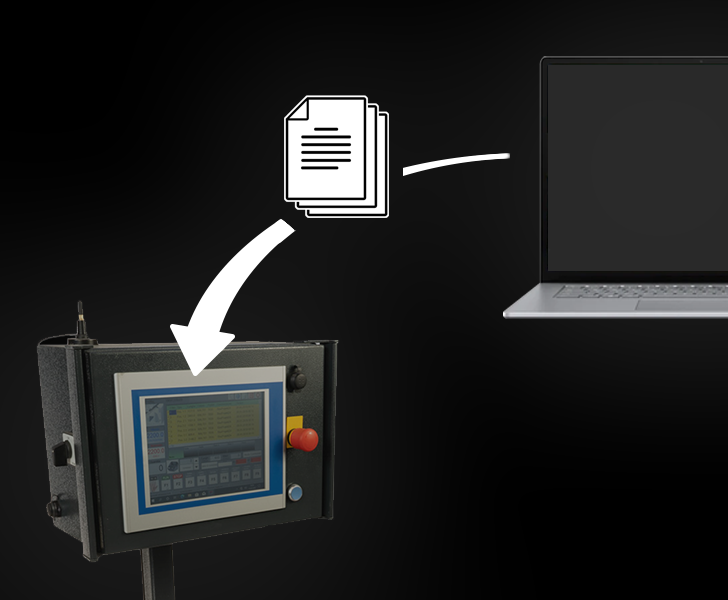

Enabling the import of cutting lists

The machine is preset to import cutting lists created by dedicated software. Processed files can be imported directly from a PC or mobile devices via standard interfaces, namely: USB, LAN, WLAN, RS232.

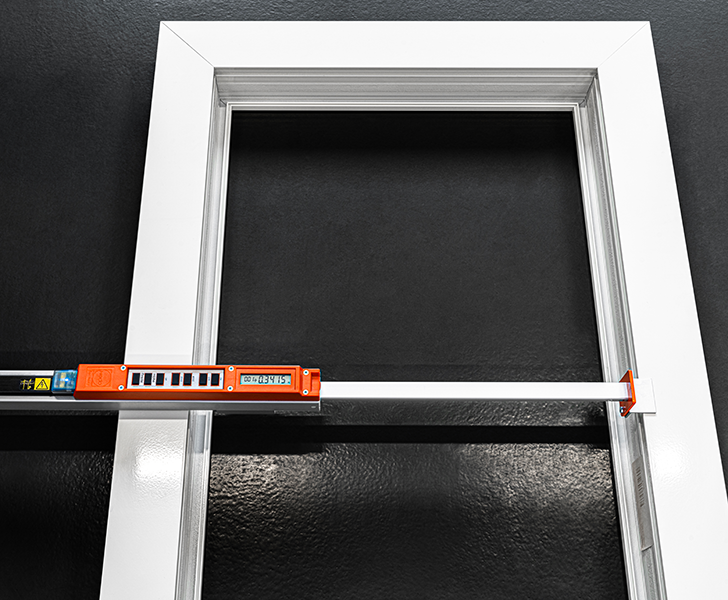

Electronic glazing bead gauge

Instrument for measuring the length of glazing bead profiles. It can detect dimensions in two measuring ranges: 150 mm to 2350 mm and 803 mm to 3000 mm. You can switch from one range to the other at any time by pressing a button, thus obtaining a single wide work area from 150 mm to 3000 mm. It has a “zero” function to define reference points for taking relative measurements. The electronic gauge has its own data interface to save measured values to a memory module or to the control unit or to transfer them to a PC via Bluetooth connection.
