Emmegi Fit MA

FIT  MA

home / product a to z / F

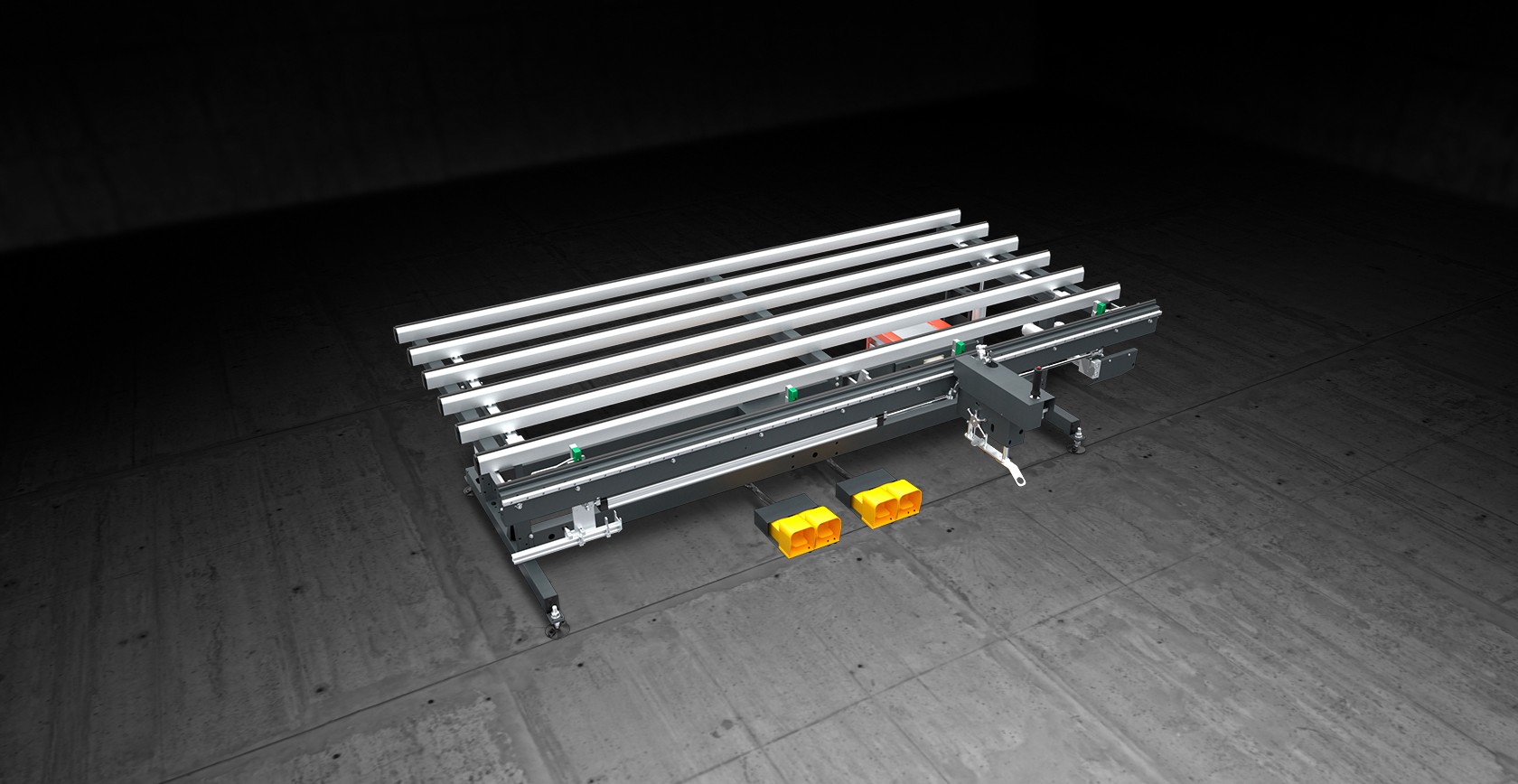

Assembly bench for fitting perimetral band-cut hardware on aluminium, wood and PVC sashes. A system of drop-away vices grips the sash. The bench is equipped with an automatic feeding screwing system and optionally with a system for hardware cutting and measuring with hydro-pneumatic shears.

Technical data arrow_drop_down
WORK BENCHES
Hard anti-friction PVC contact surface

Pneumatic tilting of work table from 0° (horizontal) to 12°

Adjustable work table height (mm)
875 ÷ 925
WORKPIECE LOCKING
Vice opening (mm)
290 ÷ 2.840
Adjustable clamping force, max. (N)
740
Self-centring clamping system with retractable bars

CHARACTERISTICS
Automatic screwing unit mounted on horizontal guide with laser positioning system

Belt hardware cutting with automatic stop gauge

Air consumption (Nl/min)
870
Installed power (kW)
0,35
Length (mm)
3.540
Width (mm)
1.640
Load capacity (kg)
1.960
Weight (kg)
300
Included
Available

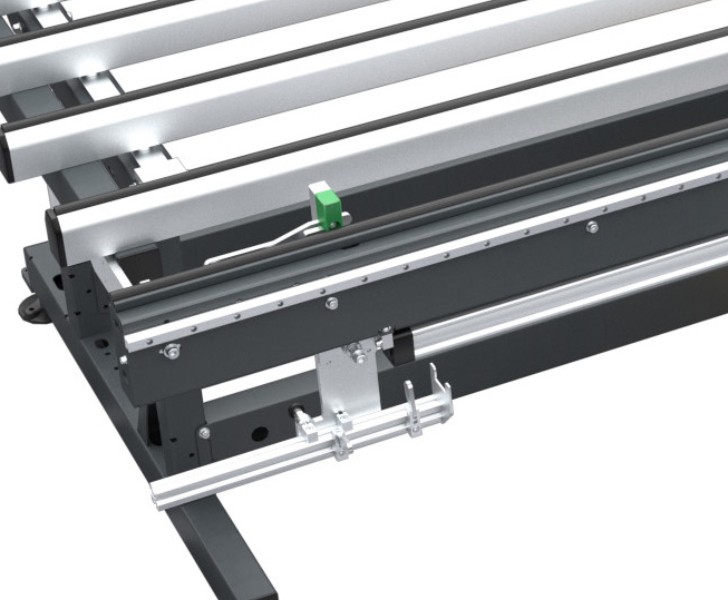

Clamping system
A retractable vice system under the work bench enables centred clamping of the frame.
FIT MA Clamping system Emmegi
FIT MA Work bench pneumatic tilting Emmegi

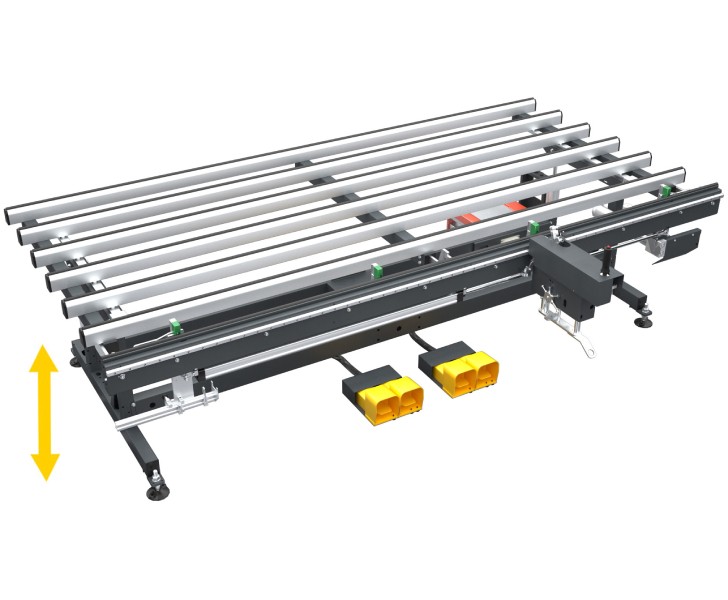

Work bench pneumatic tilting
By means of pneumatic footswitch, it is possible to place the bench in an inclined position from 0° (horizontal) to 12° to facilitate hardware assembly operations.

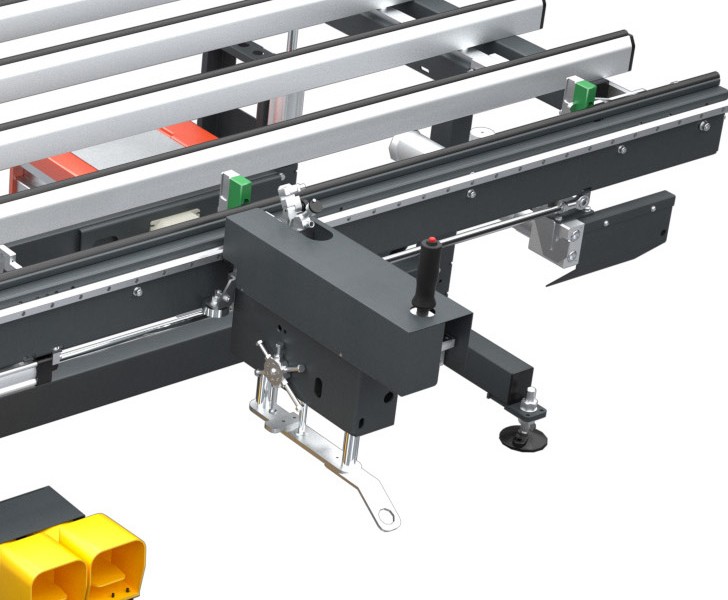

Automatic screwing unit
The screwing unit with automatic feed runs on horizontal guides.
FIT MA Automatic screwing unit Emmegi
FIT MA Support surface in hard anti-friction PVC Emmegi
Support surface in hard anti-friction PVC
The anti-friction hard PVC support surface ensures great smoothness of the frame allowing easy handling.
