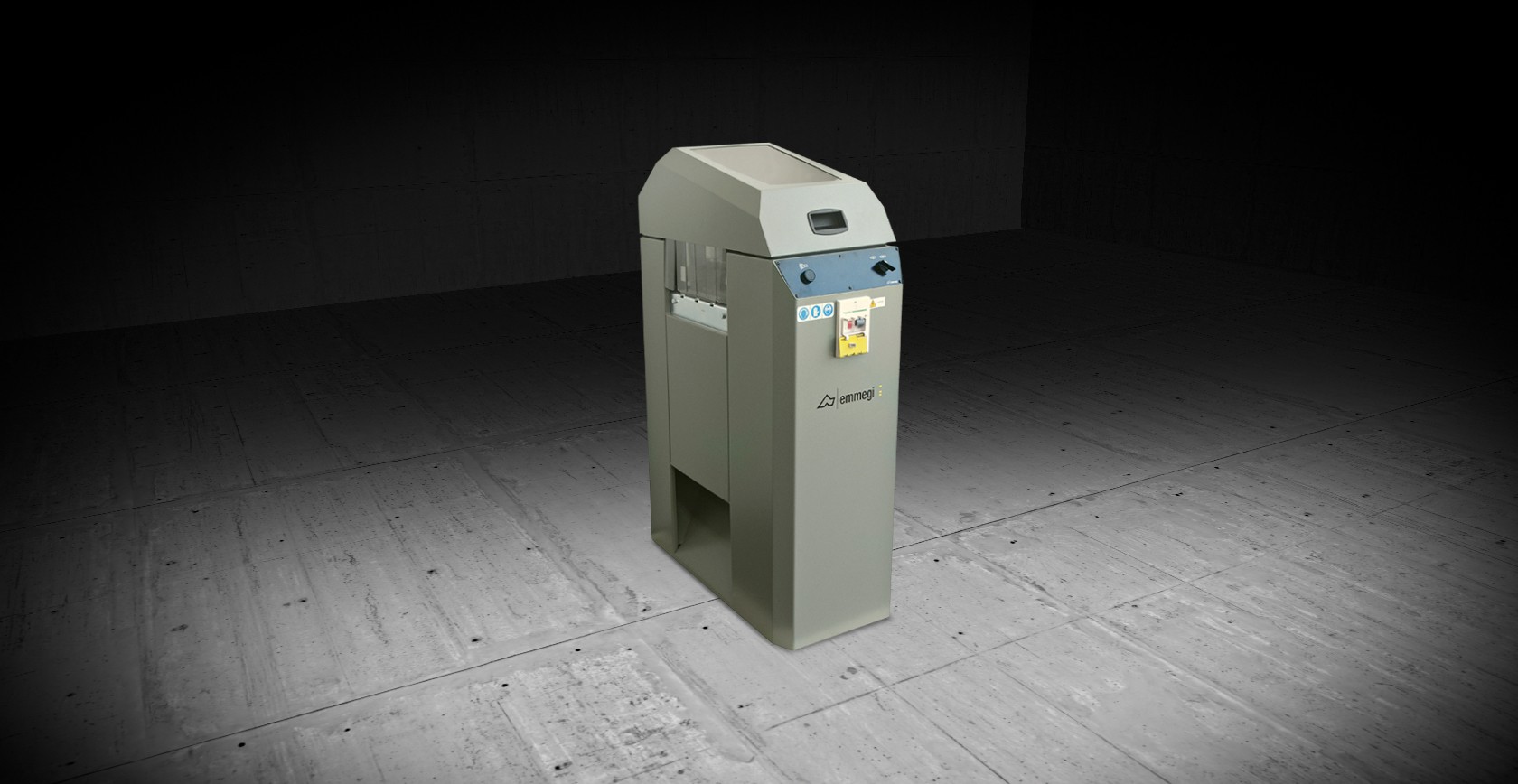

Horizontal end milling machine with manual feed. Mitre milling at 90°. Quick cutter change with manual control. Scratch-proof work table. Full guarding of work zone.

Technical data arrow_drop_down
Brake motor (kW)
Tool speed (rpm)
Stroke (mm)
Vice capacity (mm)
190 x 110
Horizontal and vertical pneumatic vices, stroke (mm)
6-position positive indexing stop
Cutter holder sleeve (mm)
Ø = 27 / 32 x 135
Max mill (mm)
Ø = 140
Micro-mist lubrication system with water and oil emulsion
Base with mill holder magazine and swarf conveyor

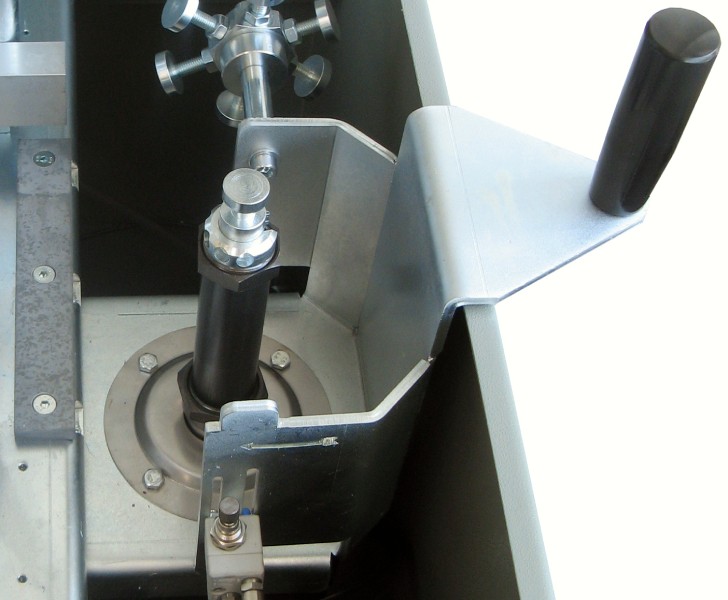

Quick tool change
Quick milling tool change, manually controlled by a lever.
LILLIPUT 290 M Quick tool change Emmegi
LILLIPUT 290 M Positive indexing stop Emmegi
Positive indexing stop
The manual 6-position positive indexing stop enables 6 measurements to be set so that the workpiece can be positioned quickly, thus reducing the time of the work cycle. It is also possible to manually adjust the height of the positive indexing stop.

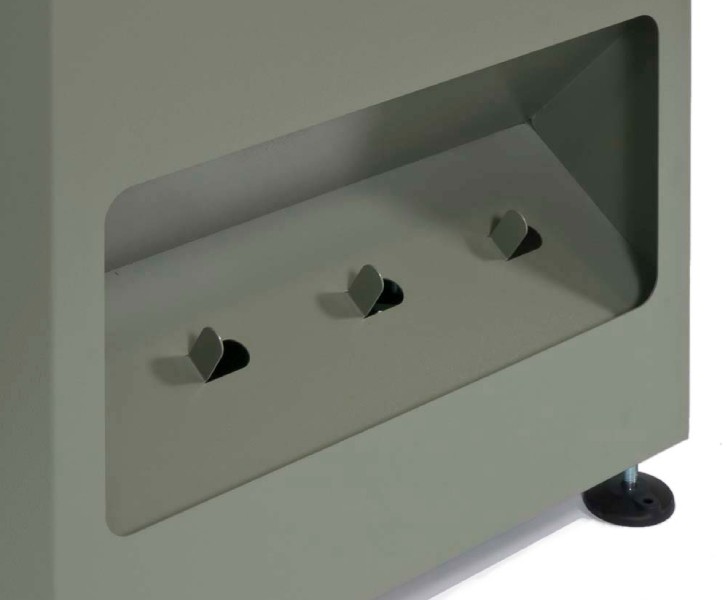

Tool magazine
The tool magazine is located in the machine base so the cutters can be placed in orderly positions, thus remaining in an intact state. Its lateral position makes the pick-up operation easier.
LILLIPUT 290 M Tool magazine Emmegi

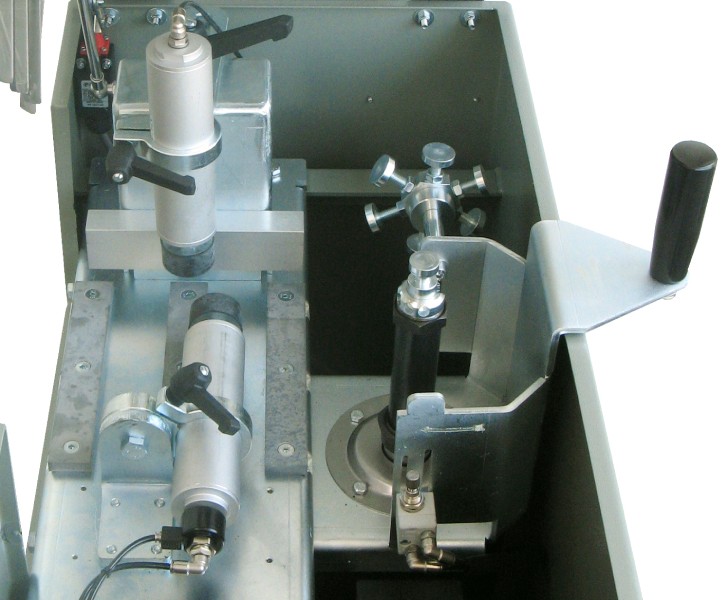

LILLIPUT 290 M Vices Emmegi
The machine is provided with a horizontal vice and a vertical vice, both operated pneumatically. The vices are manually adjustable and ensure correct gripping of the profile.
Profile support roller conveyor (Optional)
Enables correct positioning in the machine and secure support of the profile in the machining area. Slide rollers make profile handling operations easier.
LILLIPUT 290 M Profile support roller conveyor Emmegi
