Emmegi Phantomatic X4

Phantomatic X4

home / product a to z / P

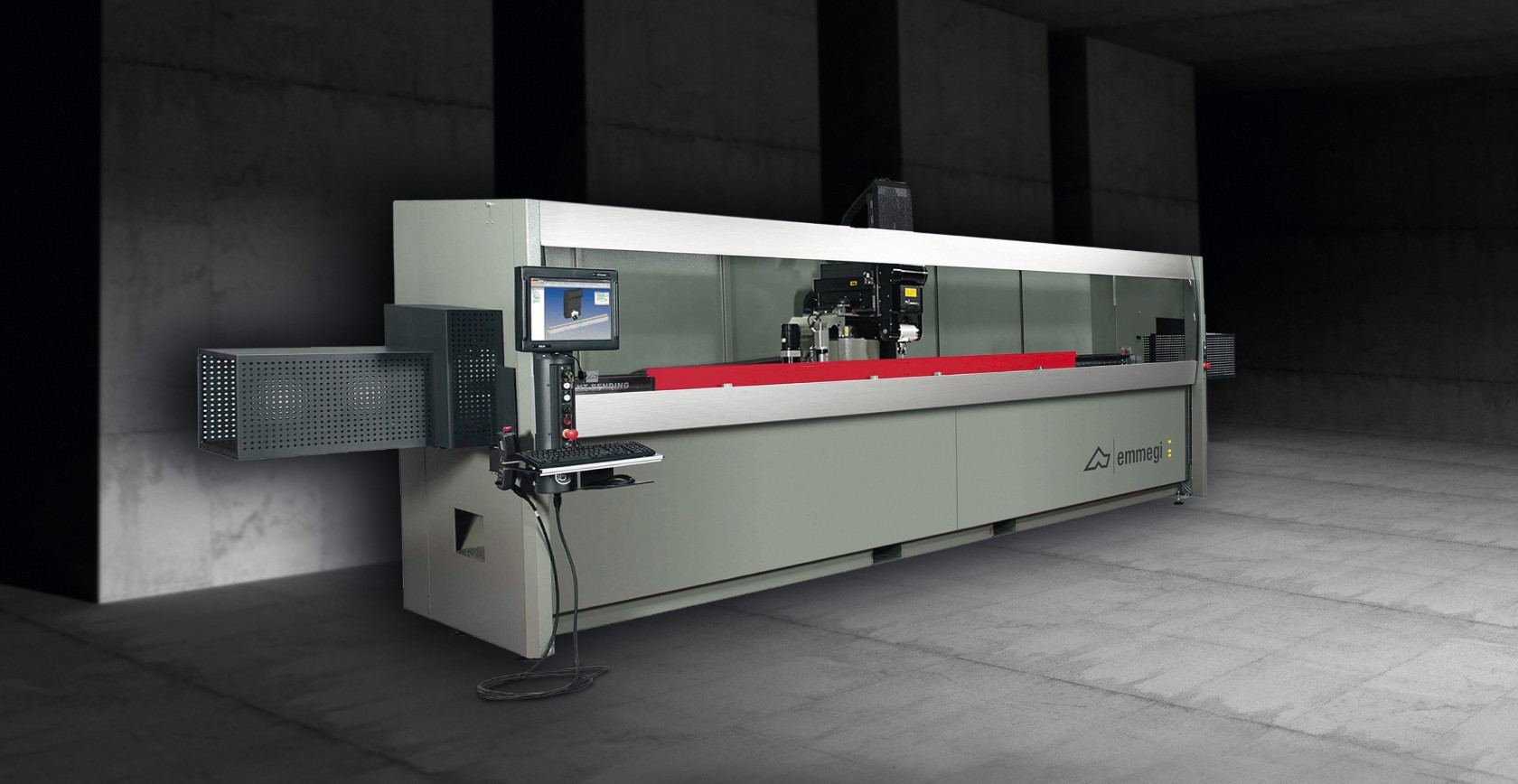

Machining centre CNC with 4 controlled axes, used for the working of bars of aluminium, PVC, light alloys in general and steel pieces up to 2 mm. Automatically positioned clamp unit. It has a 4 or an 8 place (optional) tools storage, with the possibility of hosting 2 angular units and one milling disc, to perform machining on the 5 sides of the piece. Machines bars up to 4 m in length. The 4th NC axis allows the electrospindle to rotate from 0° to 180° and position itself at any intermediate angle. The machine can therefore perform machining operations on the top and side faces of the profile at any angle within the range. All CNC axes are absolute and do not require resetting upon machine restart. It also has a mobile work surface that facilitates the piece loading/ unloading operation and signifi cantly increases the workable section.

Estimate Request

Technical data

AXIS STROKES

X AXIS (longitudinal) (mm)

4.000

Y AXIS (transversal) (mm)

270

Z AXIS (vertical) (mm)

420

A AXIS (electrospindle rotation)

0° ÷ 180°

ELECTROSPINDLE

Maximum power in S1 (kW)

7

Maximum speed (rpm)

16.500

Toolholder cone

HSK - 50F

Automatic tool holder coupling

Cooling with heat exchanger

AUTOMATIC TOOL MAGAZINE ON BOARD THE GANTRY

Maximum number of magazine tools

8

Maximum number angle machining units that can be inserted in the tool magazine

1

Maximum diameter of the blade that can be inserted in the magazine (mm)

Ø = 180

WORKABLE SIDES

With direct tool (upper face and side faces)

3

With angle machining head (heads)

2

With blade tool (upper face, side faces and heads)

1 + 2 + 2

WORK AREA

1F = 1 face machining 5F = 5 faces machining

	A	B	C	D	X1	Y1	Z1	X2	Y2	Z2
PHANTOMATIC X4	45	102	232	45,5	4.000	210	250	3.760	180	250

Dimensions in mm

TAPPING CAPACITY (with tap on aluminium and through hole)

With compensator

M8

Stiff (optional)

M10

PROFILE POSITIONING

Workpiece reference LEFT stop with pneumatic movement

Workpiece reference RIGHT stop with pneumatic movement

WORKPIECE LOCKING

Standard number of pneumatic vices

4

Maximum number of pneumatic vices

6

Automatic vice positioning through X axis

SAFETY DEVICES AND PROTECTIONS

Machine integral protection booth

Side tunnels

Cabin enclosure, sound proofing and inner lighting

Fume extraction system

Included

Available

4 axes electric head -X-

7 kW S1 high torque electrospindle allows heavy duty machining. The electrospindle movement along A axis performs 0° to 180° rotation, allowing to work on 3 sides of the profile with no need to reposition it. It can be used for some types of steel extrusions as well as for aluminium profiles, thanks to the software-adjusted lubricating system. With its double tank it allows either minimum oil circulation or oil emulsion spray-mist.

Phantomatic X4 4 axes electric head -X- Emmegi

Phantomatic X4 Operator interface Emmegi

Operator interface

The new control version with suspended interface allows the operator to look at the monitor from any position, as it can be rotated around the vertical axis. The operator interface has a 15" touch screen display with all USB connections necessary to interface with a remote PC and NC. It has a push-button panel, mouse and keyboard. It is also set up for the connection of a barcode reader and remote push-button panel. It is equipped with a front USB socket for data transfer.

Vices

The machine software can calculate the correct positioning measure for each vice unit, according to the length of the workpiece and to the type of machining to be performed. The automatic positioning system allows picking all vice units and moving them by means of the gantry. This operation is performed at the highest speed and with great precision and spares longer time and collision risks, so that the machine can also be easily used by less experienced operators.

Phantomatic X4 Vices Emmegi

Phantomatic X4 Pneumatic stops Emmegi

Pneumatic stops

The machine is equipped with strong stops allowing bar reference. One is positioned on the left side (standard) and the other on the right side (optional). Each stop is activated by a pneumatic cylinder, it is retractable type and is automatically selected by the machine software according to the machining to be performed. In short, double stop offers the advantage to load more profile pieces for multi-piece mode machining as well as the possibility to reposition the bar or the piece and perform machining on particularly long profiles.

Tool magazine

The tool magazine is integrated on the X axis, in the lower part and behind the electrospindle. It allows great reduction of tool change times. This function is particularly useful in the extrusion head and tail machining, avoiding the stroke to get to the magazine, as it moves simultaneously with the electrospindle and its positions. The magazine can contain up to 8 tool holders with relevant tools, which can be set at the operator’s discretion. A sensor detects correct cone positioning.

Phantomatic X4 Tool magazine Emmegi

Phantomatic X4 High-performance industrial human-machine interface PC Emmegi

High-performance industrial human-machine interface PC (Optional)

The high-performance industrial PC significantly improves the computing power of the operating system and the speed of the application software installed. This device allows to achieve a reduction in machine set-up time and manage the most complex cycles without slowdowns.

Phantomatic X4 Phantomatic X4 Emmegi
