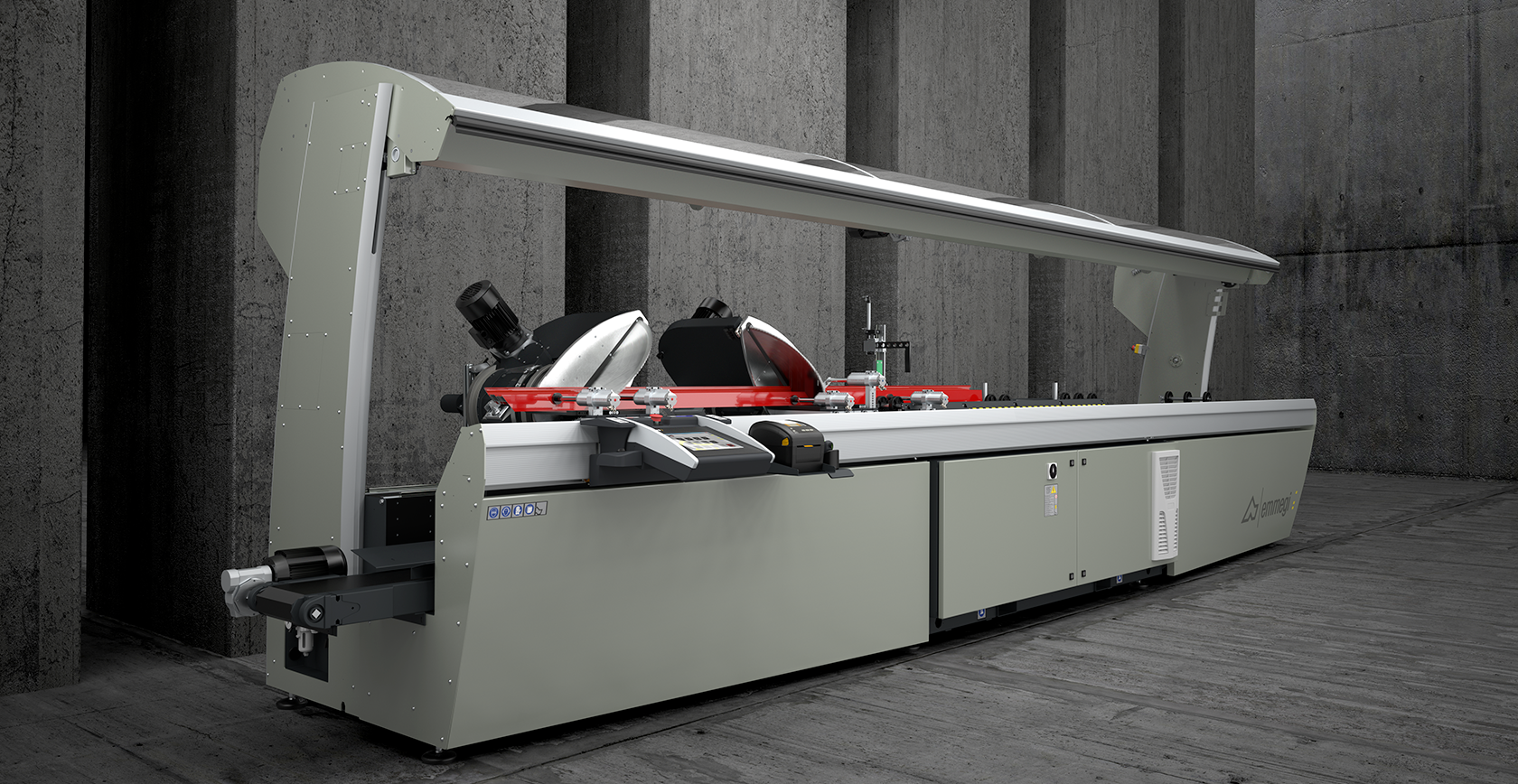

Precision  T2

Double-head cutting-off machine with 3 controlled axes for aluminium, PVC and light alloys with automatic movement of the mobile head and electronic management of all 45° (internal) to 15° (external) angles, with a precision, within each degree, of 280 positions. In the basic version blade advancement is driven by a couple of hydro-pneumatic cylinders. 550mm-blade. Available with a useful cut of 5 m or 6 m in length.

Technical data arrow_drop_down
Electronic control of the X axis
Standard X axis positioning speed (m/min)
Mobile head position reading with absolute magnetic strip direct measuring system
Detection of cutting unit tilting through direct measurement system with absolute magnetic strip
Electronic control of intermediate angles
Maximum internal inclination
Maximum external inclination
Hydropneumatic blade feed
Effective cut, according to model (mm)
5.000 / 6.000
Cemented carbide blade

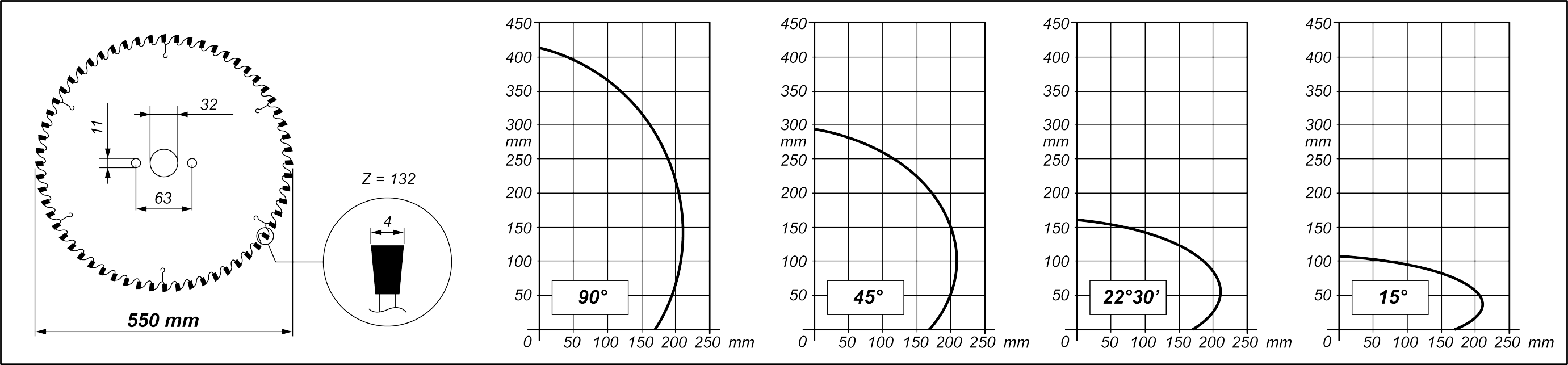

Blade diameter (mm)
Blade motor power (kW)
Electronic profile thickness gauge
Electrically operated fully enclosed front guarding
Right and left wall connection fencing (basic version)
Enclosure guard of the 4th (rear) side
Soundproofed integral protection cabin with internal lighting
Pair of horizontal pneumatic vices with "low pressure" device
Pair of horizontal vertical vices
Pair of additional horizontal vices
Intermediate pneumatic profile support
Roller conveyor on the mobile head with servo-controlled pneumatically operated profile supports
Profile support roller conveyor on fixed head for profile infeed from left (HS version excluded)
Additional vice for profile support on mobile head roller conveyor
Perform single cuts
Execution of intermediate angles cuts
Execution of cyclical cuts from cutting lists
Bar optimisation
The ergonomic state-of-the-art control panel features a 10.4” touchscreen display and fully customised software and is packed with functions developed in the Microsoft Windows® environment specifically for this machine. The machining cycle can be optimised by creating cutting lists, thereby reducing scrap and cycle times for workpieces loading-unloading.
Precision T2 Control Emmegi
Precision T2 Cutting units inclination virtual axis Emmegi
Cutting units inclination virtual axis

Inclination of each head of up to 15° outwards is provided by two circular guides mounted on four pairs of steel rollers. This patented solution makes it possible to eliminate obstructions in the cutting area, all to the benefit of profile positioning and clamping, while also offering greater rigidity than traditional systems. The absolute magnetic strip positioning system dispenses with the need for axes homing procedures, with the associated idle times.

Profile clamping
Making use of the ample space provided by the use of the virtual axis, clamping of the profile to be cut is performed by two horizontal hold-down devices with extreme precision and in absolute safely. For vertical clamping, particularly for special cuts, the machine can be equipped with a patented system of horizontal hold-down devices.
Precision T2 Profile clamping Emmegi
Precision T2 Load and unload Emmegi
Load and unload
The Precision cutting-off machine can be equipped with a roller conveyor on the mobile head, for standard feeding and unloading, or on the fixed head for feeding from the left-hand side. A pneumatic stop device on the mobile head is available to ease positioning of the profile in this loading mode.
Label printer (Optional)

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.

Precision T2 Label printer Emmegi
Precision T2 Machine Supervisor Emmegi
Machine Supervisor (Optional)

Software for generating machine activity data. The MAC-X office software is required for monitoring and reporting this data.
