SCA/E

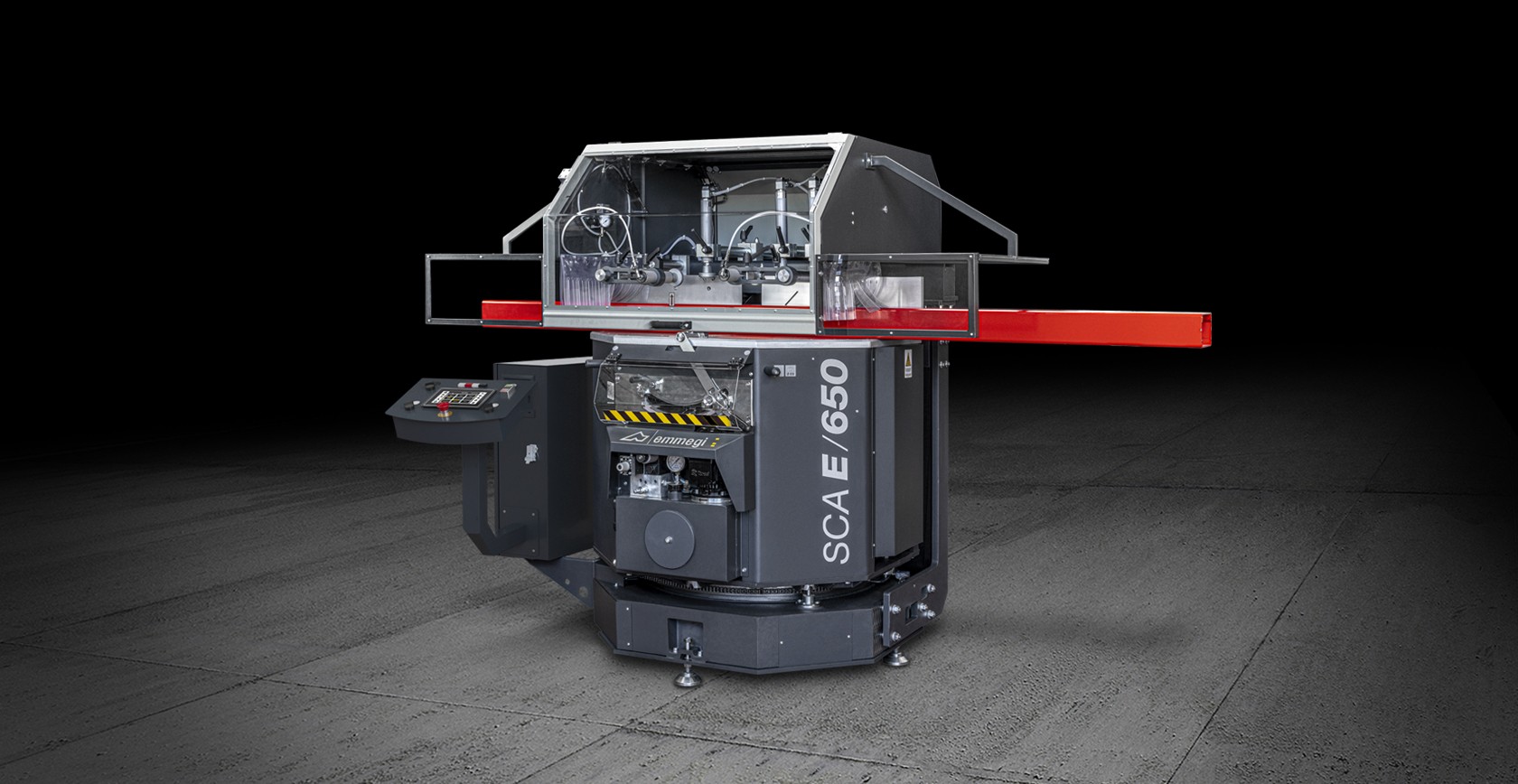

Single-head, rising blade cutting-off machine, with N/C automatic rotation of the vertical axis through brushless motor and contemporaneous hydraulic tilting of the horizontal axis. Cutting with angular settings from 90° to 22°30’ (left and right) on the vertical axis and from 90° to 35° (right only) on the horizontal axis.

Technical data arrow_drop_down
MACHINE CHARACTERISTICS
Electronic control of the vertical rotation axis

Hydraulic blade feed

Blade rotation on vertical axis
-22°30' ÷ +22°30'
Electronic adjustment of intermediate angles on vertical axis

Blade tilting on horizontal axis (to the right)
90° ÷ 35°
Blade diameter (mm)
Ø 650
Absolute encoder positioning

Widia blade

Mechanic adjustment of intermediate angles on horizontal axis

Horizontal axis tilting digital display

Adjustable blade feed speed

BLADE MOTOR
Three-phase brake motor with inverter

Power rating (kW), three-phase drive motor
5,5
Blade rotation speed (rpm)
2.800
Peripheral speed (m/s)
95
Brake intervention time (s)
10

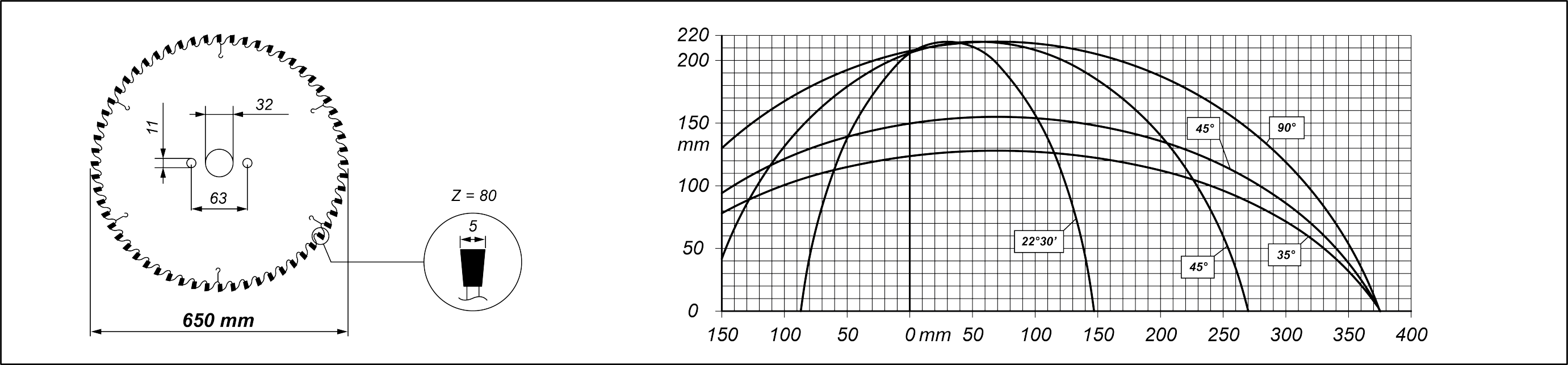

CUTTING DIAGRAM
SAFETY DEVICES AND PROTECTIONS
Side protection tunnels

Manual operated full guard

LUBRICATION AND SUCTION
Minimal oil diffusion lubrication system

Pre-setting for automatic exhauster start

PROFILE POSITIONING AND CLAMPING
Additional horizontal vice

Adjustable and retractable profile support square for compound cuts up to 35°

Loading surface height (mm)
1.100
Pressure reducers with pressure gauge for clamps

Horizontal pneumatic vice
1
Vertical pneumatic vices
3
Included
Available
Blade

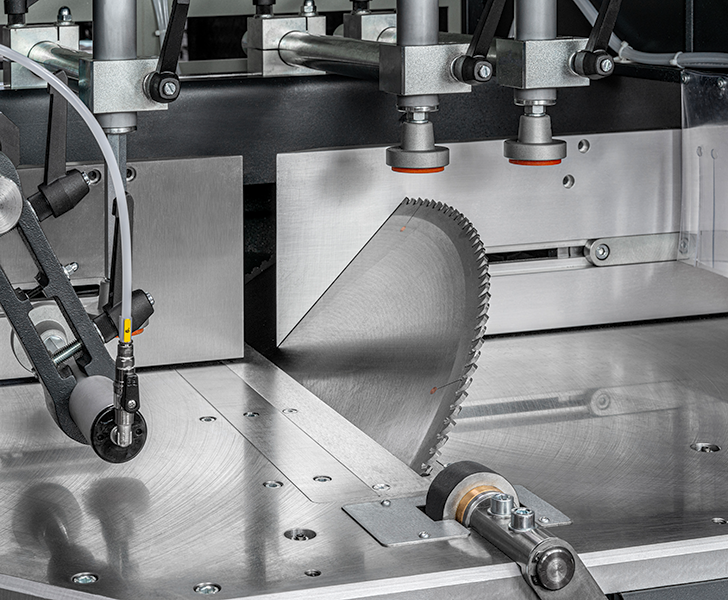

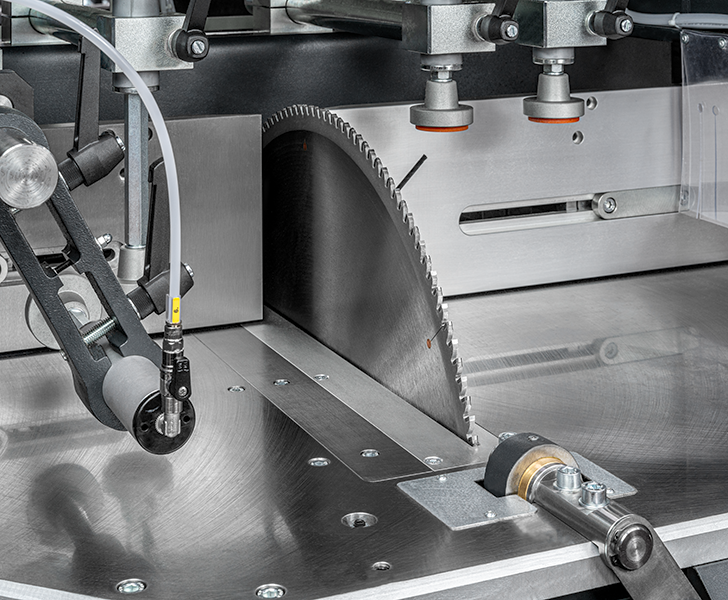

The cutting-off machine is equipped with a 650-mm-diameter Widia blade mounted on a hydraulic feed system, which ensures the rigidity of the system and, at the same time, the power needed to process profiles with large sections.
SCA/E Blade Emmegi
SCA/E Vices Emmegi
Vices

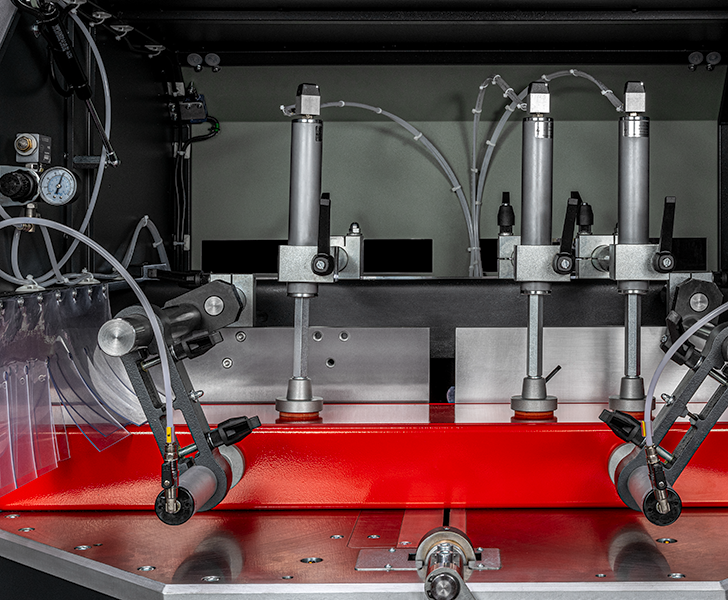

The workpiece is clamped using horizontal and vertical vices, which are characterised by extremely fast positioning. The robustness of the mechanical structure used ensures the extreme rigidity of workpiece clamping on the work benches.
Cutting zone
To enable maximum utilization of the large cutting capacity, which ensures the machinability of large profiles, the cutting zone features a sturdy structure designed to ensure maximum stiffness. This is with regard to both the horizontal plane and the vertical square.
SCA/E Cutting zone Emmegi
SCA/E Control Emmegi
Control

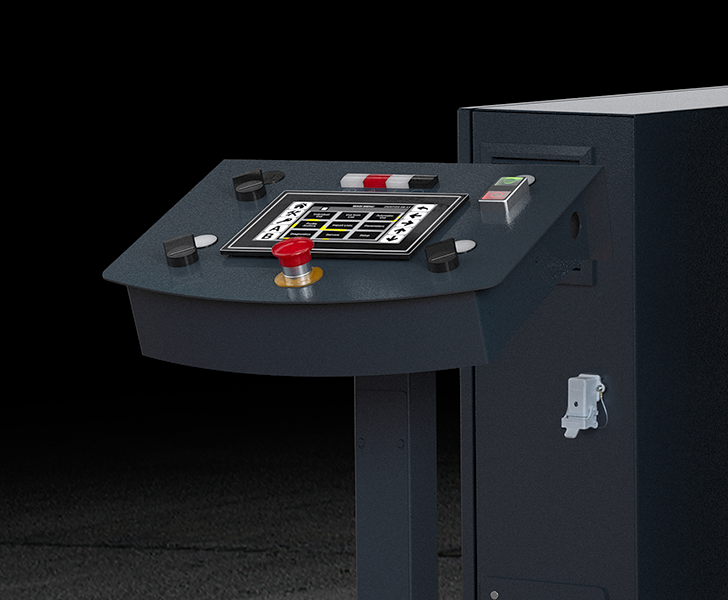

The control console features a 7” touch-screen display and fully personalised software, allowing complete management of the machine operating functions. It allows reading the cutting unit tilting on the horizontal axis, setting the cutting angles on the NC vertical axis, as well as workpiece clamping. Using the control console, it is also possible to prepare and optionally import angle cutting lists automatically.

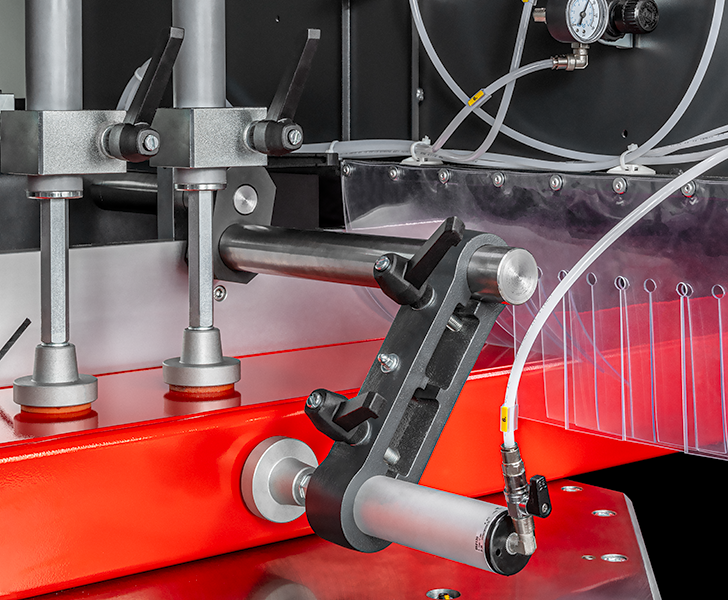

Additional horizontal pneumatic vice (Optional)
It is possible to install additional vices beyond the standard machine equipment. In this way, it is possible to ensure perfect clamping of bars or bar sections even in the case of special profiles.
SCA/E Additional horizontal pneumatic vice Emmegi
SCA/E Vice pressure reducers with pressure gauge Emmegi

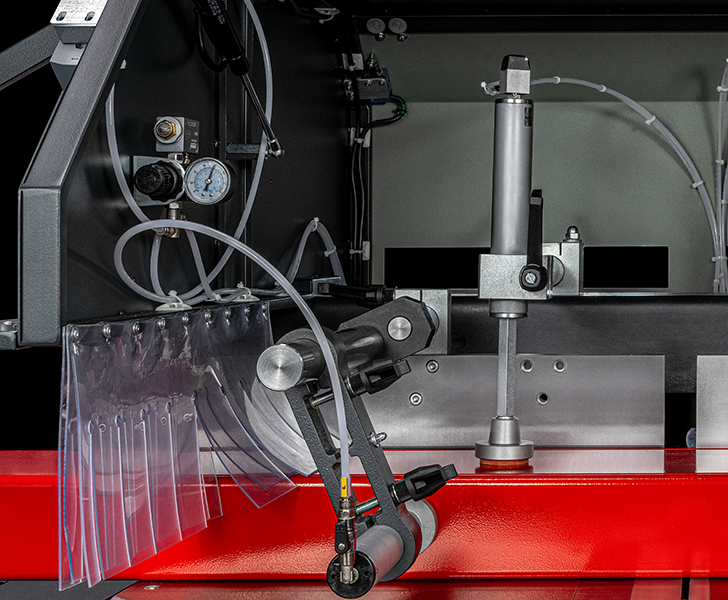

Vice pressure reducers with pressure gauge (Optional)
When cutting profiles of particular consistency, flexibility or brittleness, the vices can be equipped with pressure regulators. This solution, combined with an accurate use of the vices, allows adjusting the profile clamping even in very complex cases.
