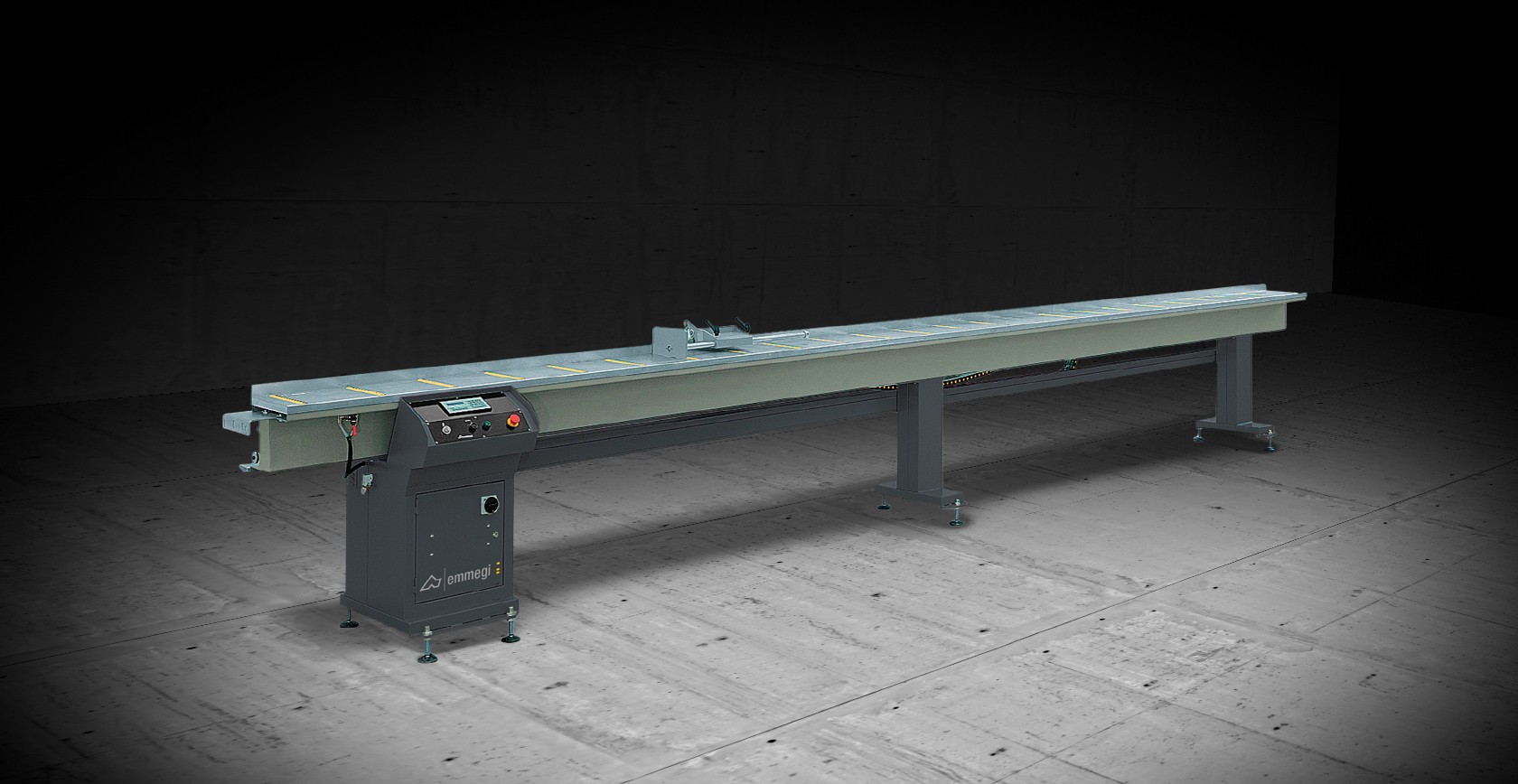

Stop gauge and profile support system, driven by DC motor, complete with electronic read-out through encoder. Tolerance on positioning ± 0.3 mm.

Technical data arrow_drop_down
Backlit display
Perform single placements
Storage of 99 profile corrective values with measurement automatic calculation for angled cuts
Storage of 30 cutting lists (50 rows each) from keyboard
USB port
RJ45 network card
PVC-coated steel rollers (295) on bearings
Pneumatic lifting of workpiece stop
Effective stroke (according to model) (mm)
4.200 ; 7.200

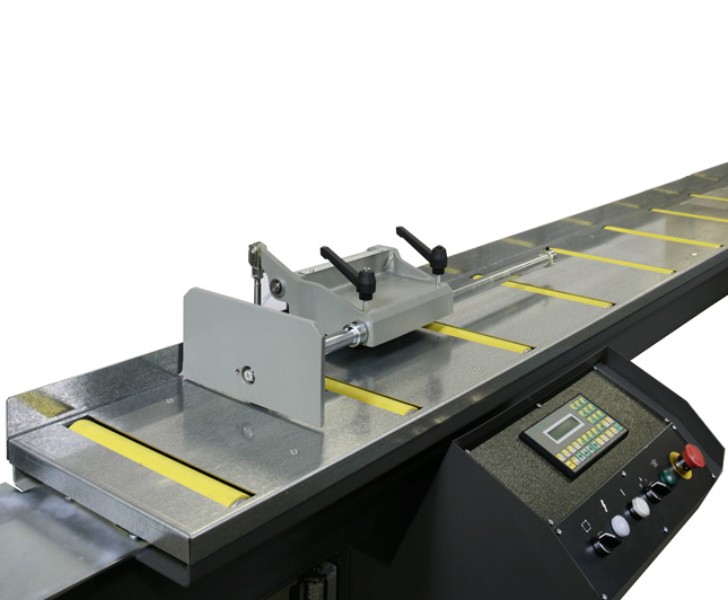

Side view
Through special steel bracket, the mechanical connection to the cutting machine is made precisely and rigidly.
Microbo Side view  Emmegi

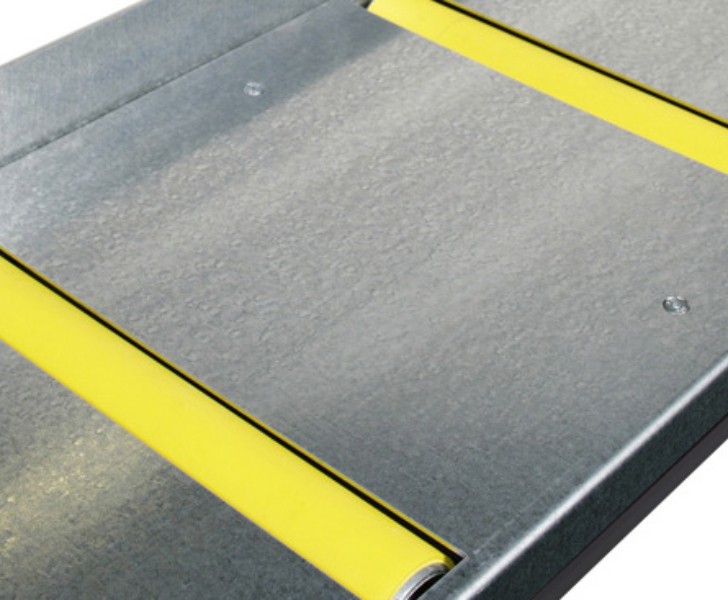

Microbo Roller Emmegi
PVC-coated steel rollers of 295 mm that allow the profile to slide effectively, preventing surface damage.

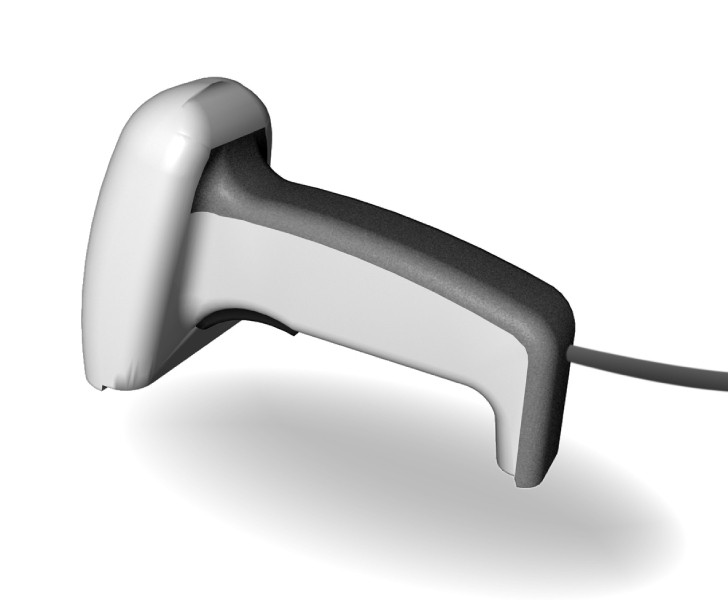

Barcode reader (Optional)

Through the use of the barcode reader, the system automatically identifies the structure and consequently positions the stop at the predetermined height, reducing cycle times.

Microbo Barcode reader Emmegi

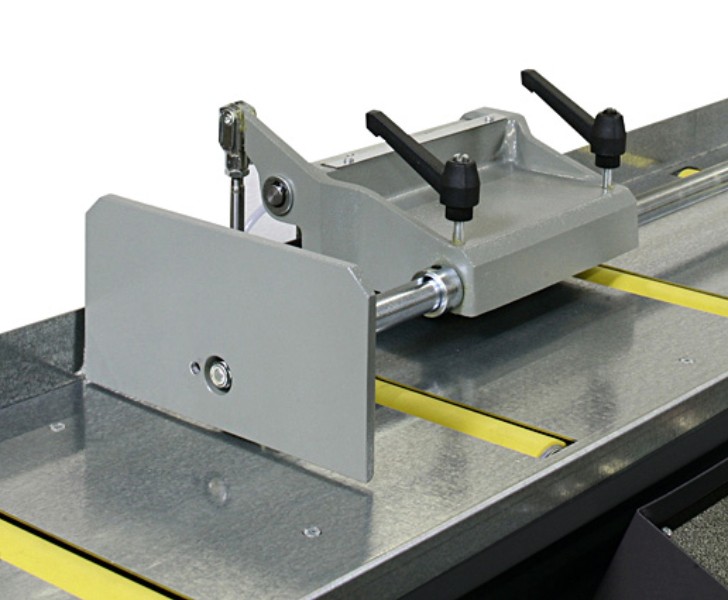

Microbo Reference stop  Emmegi
Reference stop
Carriage running on ball bushing actuated by numerically controlled kinematics, which allows, referring to the centre of the blade, the realization of the length of the workpiece to be cut.

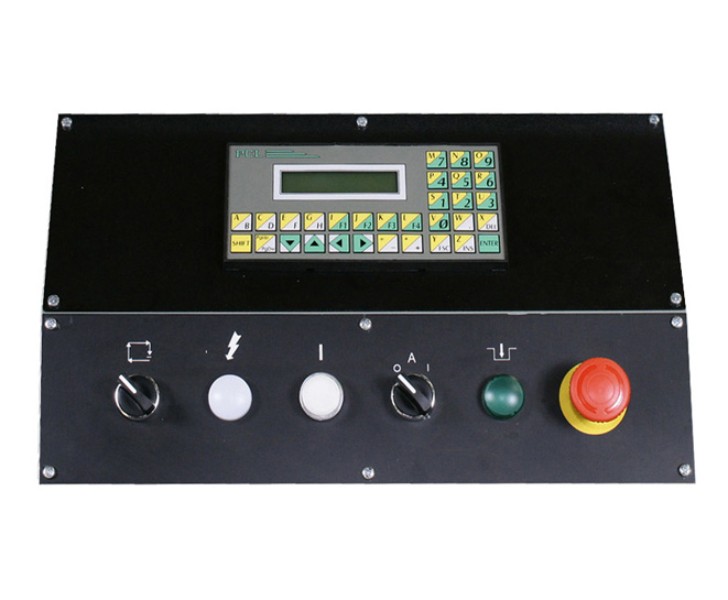

The control console allows total management of the machine's operational functions. Through the PCL tool, it is possible to perform the preparation of cutting lists, then allowing the repositioning of the stop sequentially and automatically.
Microbo Control Emmegi
